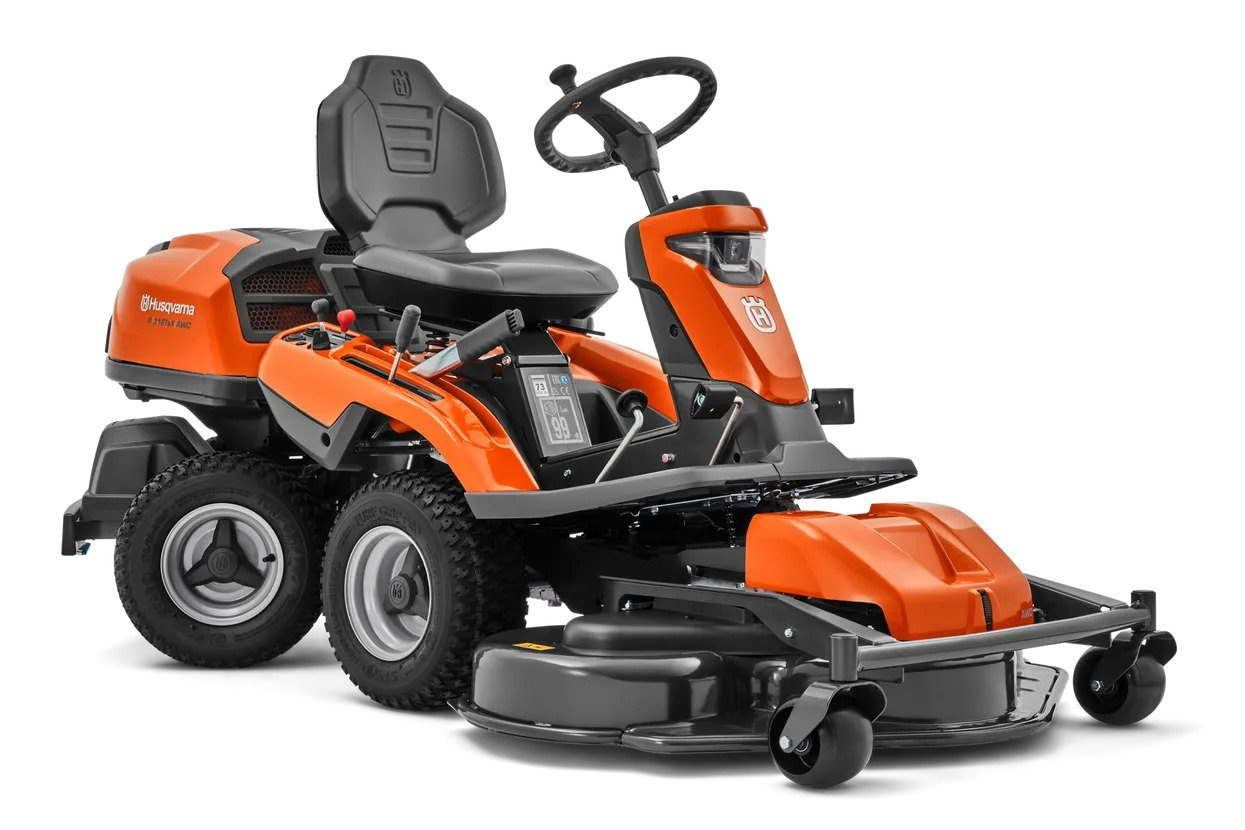

Compact, hugely capable and flexible Rider with power steering, a powerful V-twin engine and a choice of cutting decks, BioClip® (mulching) and rear ejection. Equipped with X:tra efficiency, an intuitive display, dual headlights and Bluetooth connectivity with which you easily monitor your rider with the Husqvarna Connect app.
Unique articulated steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

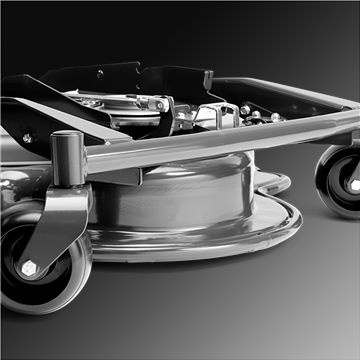

Front-mounted cutting deck
Front-mounted cutting deck for excellent accessability into corners and under bushes, park benches etc.
All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Optional Combi cutting deck
This Rider is delivered deckless and can be fitted with 94, 103 or 112 cm Combi cutting decks for efficient BioClip® and rear ejection cutting.
Service position
Service position on the cutting deck facilitates cleaning and service.
Versatile usage
A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.
External fuel cap
Thanks to the external fuel cap, you don't have to open the engine hood when taking on more fuel. The extra wide fuel tank opening makes refueling even easier.
Automatic blade engagement
The blades are engaged automatically, when you lower the cutting deck.
Combi cutting deck with rear discharge
The rear discharge mode provides high-effective cutting performance on areas with higher and rougher grass
Floating cutting deck
The floating cutting deck follows the contours of the ground, which reduces the risk of scalping the lawn.
Easy access

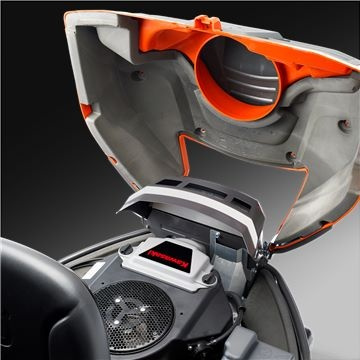

The tilting hood and easy-access servicing points make maintenance and servicing easy.
Pivoting rear axle
The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.
Storage compartment
The open left-hand storage is easy to access while mowing.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable
Power-assisted steering
Power-assisted steering makes driving less strenuous and more enjoyable.
Pedal-operated hydrostatic transmission
Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.
Easy-access cutting height lever
The cutting height lever is easy to reach from the drivers seat, making it possible to do cutting height changes while mowing.
Four large wheels
16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.
Pivoting support wheels
The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damages to the lawn surface.
Transparent fuel tank
Large, transparent fuel tank makes it easy to check the fuel level.
12V socket outlet
Makes it possible to plug in extra electric equipment, charge
your cellular phone etc.
Bottle holder
Convenient bottle holder for refreshments.
X-tra efficiency
The X models feature a car style engine hood with sound absorbing material for improved sound quality. This low sound technology makes it possible to increase the engine power and thereby also the blade and ground speed, which makes the X models extra efficient.
Attachment frame
Easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.
Easy-access controls
Controls are easy accessible and designed for optimum user comfort.
Combi cutting deck with BioClip® (mulching)
BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.

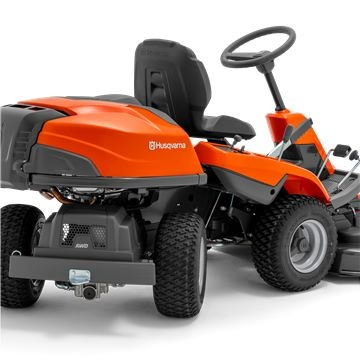

Engine behind driver
Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the drivers area.
Adjustable pitch angle
Possible to fine-tune the cutting deck position, to ensure perfect cutting results at all times.
Front head lights
Two 20W halogen lights provide efficient work light.
Hour meter with service minder
Indicates when it's time to service your tractor.
| Power/fuel type | Gasoline |
|---|---|
| Net power at preset rpm Energy | 9.8 kW |
| Motor/engine manufacturer | Kawasaki |
| Engine name | FS481V |
| Cylinder displacement | 603 cm³ |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure |
| Oil filter | Yes |
Exhaust emissions (CO2 EU V) | 851 g/kWh |
| Uncut circle | 30 cm |
|---|---|
| Cutting width, min | 94 cm |
| Cutting width, max | 112 cm |
| Cutting height min | 25 mm |
| Cutting height max | 75 mm |
| Blade engagement | Automatic |
