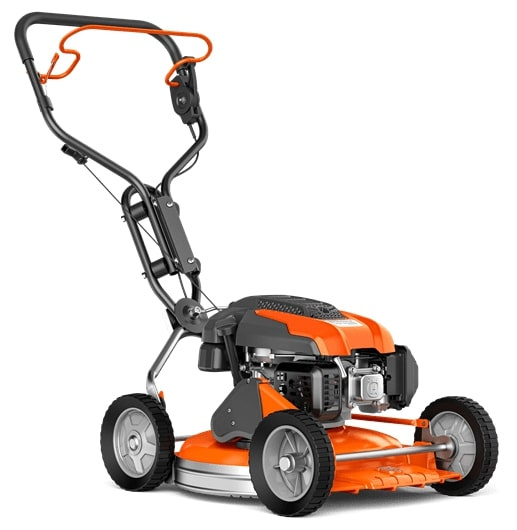

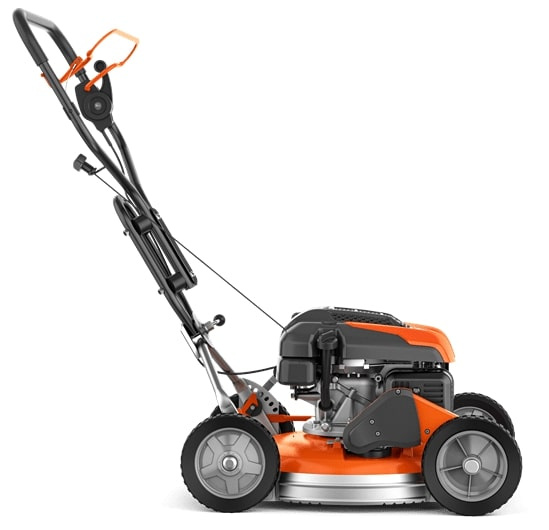

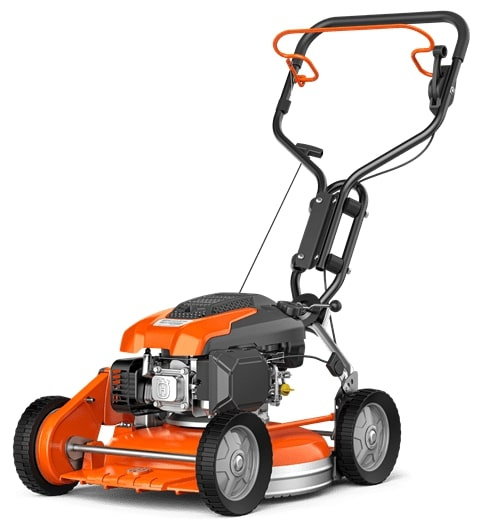

KLIPPO LB 548SQe, a compact and dedicated BioClip® mower with front-wheel drive for commercial use. The standard sized 48 cm cutting deck makes it to a perfect solution for complex and narrow areas or as a complementary trimming tool for ride-on or robotic mowers. The model is built on the highly respected KLIPPO platform, well-known for outstanding durability and reliable performance. Equipped with the fully commercial and high-specified Husqvarna HS 166AP engine, cast aluminium decks and an ergonomic side-adjustable and effective anti-vibrated handle system, which help the model fulfil A(8) EN836. KLIPPO LB 500 Series, commercial models with outstanding performance and durability for a long-term relation.
Side adjustable handlebar
The handlebar is adjustable both horizontally and vertically for optimum working positions and improved ergonomics.
Husqvarna HS 166AP engine
HS 166AP, a powerful and fully commercial walk-behind engine from Husqvarna. Designed for high reliability and easy starting. High specified components to withstand tough daily usage and for guarantee longest possible service-life.
Stainless steel rims
8-inch stainless steel rims with double-sealed bearings. Rubber tyres provide deeper tread depth for increased traction and a more comfortable drive.
BioClip®
Cutting method BioClip®. The grass is cut twice and finely chopped before being returned to the lawn as natural fertiliser.
| Engine | KLIPPO LB 548SQe |
| Net power at preset rpm Energy | 2.75 kW |
|---|---|
| Net power at preset rpm | 2,900 rpm |
| Engine brand | Husqvarna |
| Engine name | HS 166AP |
| Cylinder displacement | 166 cm³ |
| Engine lubrication type | Splash |
| Engine cooling | Air |
| Material | |
| Cutting deck material | Aluminium |
| Rims, material | Steel |
| Emission | |
Exhaust emissions (CO2 EU V) | 922.38 g/kWh |
| Cutting deck | |
| Cutting methods | BioClip® |
| Cutting width | 48 cm |
| BioClip® kit | Not available as accessory (NOT AVAILABLE) |
| BioClip® plug | N/A |
| Cutting height steps | 6 |
| Cutting height adjustment | Central, spring-assisted |
| Cutting height max | 60 mm |
| Cutting height min | 30 mm |
| Drive system | |
| Drive system | Self-propelled, single speed |
| Drive wheels | Front |
| Speed forward max | 4.5 km/h |
| Speed forward min | 4.5 km/h |
| Equipment | |
| Collector type | None |
| Collector volume | 0 l |
| Handle type | Anti-vibrated |
| Handle height adjustment | 2 Step |
| Wheel bearing, front/rear | Yes/Yes |
| Foldable handle | No |
| Soft grip | Yes |
| Side adjustable handle | Yes |
| Throttle control | No |
| Water hose connection | No |
| Blade brake clutch (BBC) | No |
| Dimensions | |
| Wheel size, Front | 203 mm |
| Wheel size, Rear | 203 mm |
| Weight | 34.5 kg |
| Wheelbase | 52 cm |
| Sound and Noise | |
| Sound pressure level at operators ear | 79 dB(A) |
| Sound power level, measured | 92 dB(A) |
| Sound power level, guaranteed (LWA) | 93 dB(A) |
